Yoder Pneumatic Presses

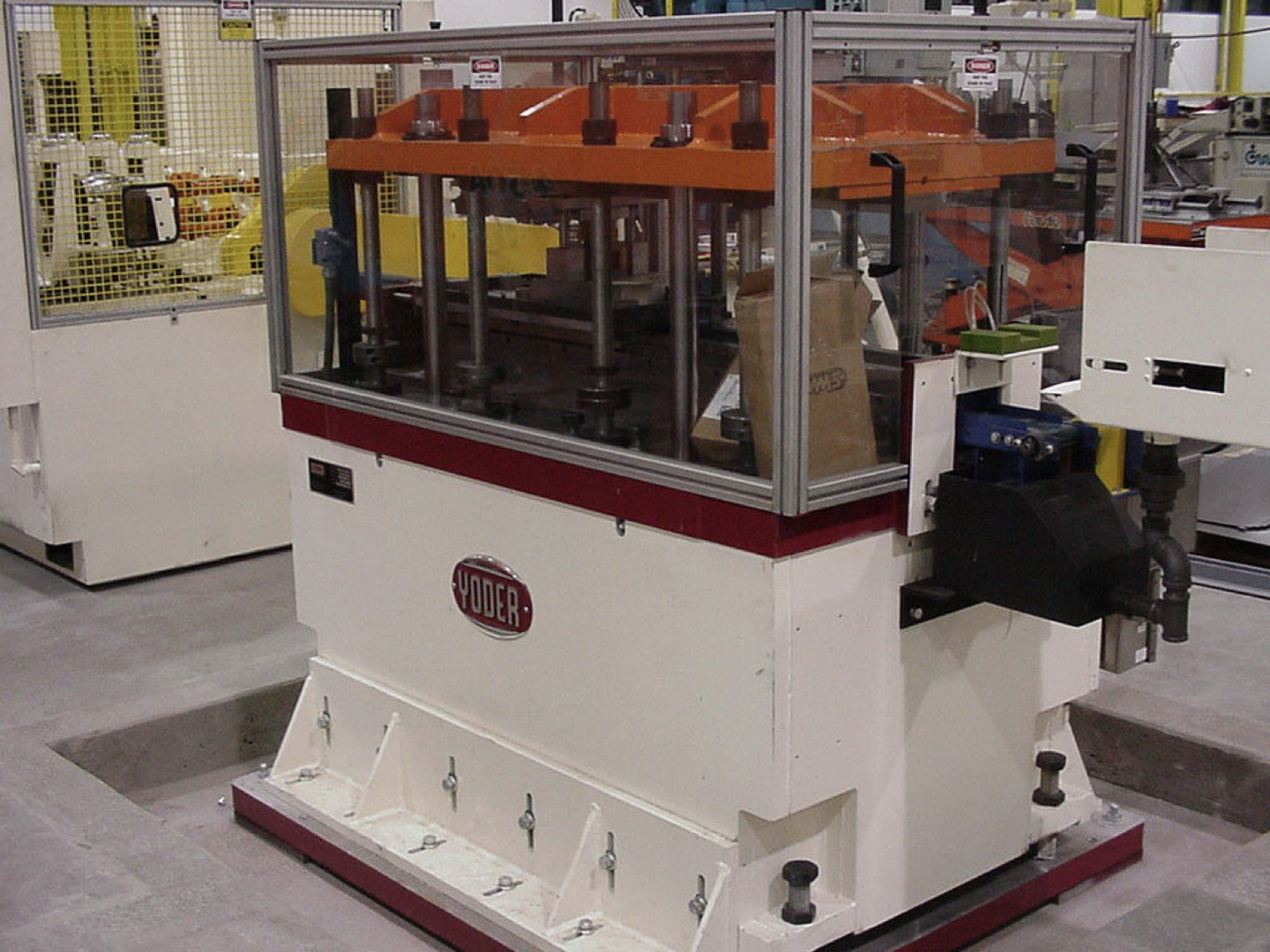

Yoder Pneumatic Presses are economical and compact, are available from 5 tons to 30 tons for a piston style stroke, and feature the following key advantages:
- Pneumatic piston is mounted in sound-limiting base assembly
- Modular piston/ram design for ease of service
- Low center of gravity allows for broad range of applications
- Simplified operator controls with safety features
- Easy ram height and stroke adjustments
| Brand | |
|---|---|
| Solution | Roll Forming of Closed Sections (Welded), Roll Forming of Open Sections (non-welded), Tube & Pipe Mills |
| Industry | Agriculture, Appliance, Construction, Fenestration, HVAC, Metal Building Products & Door, Office & Metal Furniture, Shelf & Pallet Rack |
| Application |
Product Details
Resources
Questions?
Product Details
Questions?
Resources
Standard features for Prenotch Press configuration include:
- Complete press assembly with 2-way adjustable base
- OSHA approved guarding
- Valve accumulator, safety shutoff valve, and all hoses
Standard features for Cutoff Press configuration include:
- Die rails, hardened and ground
- Die mechanical accelerator system, that includes:
- Accelerator bracket with adjustable cam strike
- Die cam blocks and cams
- Die air return system, that includes:
- Cylinder and mounting bracket
- Die stops and cushions
- Valving and hoses
- High-speed measuring system controls, that include:
- Electrical measuring system with one length and one batch capabilities
- Isolation transformer
- DC solid state press controls
- Proximity switch for die overrun
- Rotary encoder with precision encoder wheel
Optional features for either configuration include:
- Custom bed sizes
- Closed-loop die accelerator system
Estimating Tonnage Requirements
Use this basic formula to estimate your tonnage requirements: (T × L × S) ÷ 2,000 = Required Tonnage
T = Decimal thickness of material in inches
L = Length of cut in inches
S = Shear strength of material in PSI
1 Ton = 2,000 pounds
Note: Tool or die design can modify the results obtained by this basic formula.
Estimating Air Consumption for Yoder Air Presses
Apply your Air Consumption Factor to the formula below: Air Consumption Factor × Length of Stroke × Strokes per Minute = Estimate SCFM
| AIR CONSUMPTION FACTOR | AP-5 | AP-8 | AP-12 | AP-15 | AP-20 | AP-25 | AP-30 |
|---|---|---|---|---|---|---|---|
| 100 PSI | 0.226 | 0.353 | 0.508 | 0.691 | 0.903 | 1.143 | 1.411 |
| 40 PSI | 0.108 | 0.168 | 0.242 | 0.33 | 0.431 | 0.545 | 0.673 |
| 50 PSI | 0.127 | 0.199 | 0.287 | 0.39 | 0.51 | 0.645 | 0.796 |
| 60 PSI | 0.147 | 0.23 | 0.331 | 0.451 | 0.589 | 0.745 | 0.92 |
| 70 PSI | 0.167 | 0.261 | 0.376 | 0.511 | 0.668 | 0.846 | 1.044 |
| 80 PSI | 0.187 | 0.292 | 0.42 | 0.571 | 0.746 | 0.944 | 1.165 |
| 90 PSI | 0.206 | 0.323 | 0.464 | 0.632 | 0.825 | 1.044 | 1.289 |
| SPECIFICATIONS & DIMENSIONS | AP-5 | AP-8 | AP-12 | AP-15 | AP-20 | AP-25 | AP-30 |
| Bolster Plate F-B x L-R (Inches) | 27.25 x 23.25 | 27.25 x 23.25 | 27.25 x 23.25 | 33 x 28 | 33 x 28 | 37 x 32 | 37 x 32 |
| Die Space F-B x L-R (Inches) | 13.5 x 18 | 13.5 x 18 | 13.5 x 18 | 18 x 22 | 18 x 22 | 22 x 25 | 22 x 25 |
| Guide Post Diameter (Inches) | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 |
| Input Capacity (Tons) | 5 | 8 | 12 | 15 | 20 | 25 | 30 |
| Piston O.D. (Inches) | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Ram Height: Max (Inches) | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Ram Height: Min (Inches) | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Ram Plate F-B x L-R (Inches) | 20 x 18 | 20 x 18 | 20 x 18 | 26 x 22 | 26 x 22 | 30 x 25 | 30 x 25 |
| Slug Hole F-B x L-R (Inches) | 3 x 8 | 3 x 8 | 3 x 8 | 3 x 12 | 3 x 12 | 4 x 14 | 4 x 14 |
